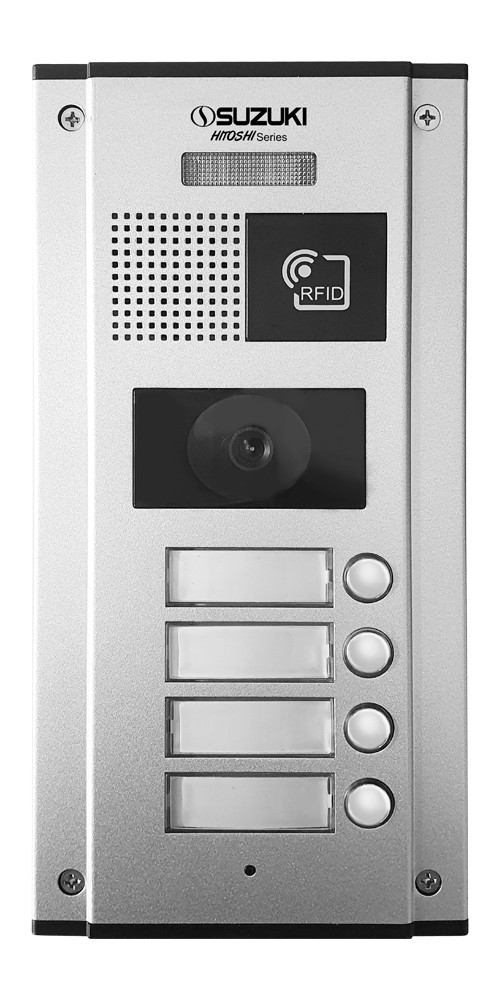

Video Outdoor Panel OP-HV4SRF Overview Specifications Gallery Overview Specifications Power Source Voltage: DC12V ~ 18V / AC12V ~ 15V Current: 200 ~ 800mA Operation Temp. -30°C ~ +50°C Wiring 5 wires with polarity for each flat Camera angle adjusting Horizontal: 35° Vertical: 15° Camera view Horizontal: 90° Vertical: 55° Camera resolution 700 TVL Image Sensor HD 1/3" Lighting Built-in white LED Dimension(mm) 261(H)*130(W)*75.6(D) Net Weight 0.60kg Mount type Flush-mounted type FUNCTION Clear voice transmitting The high-quality image transmitting with HD camera Equipped with RFID card for easy entry (RF series) Ability to define up to 2000 RFID cards to the device (RF series) Suitable for house and apartment Speaker and microphone adjustability via panel setting Waterproof call button Applicable to install and work in diverse climate Hinge holder to simple installation High quality night vision provided by LED Gallery
