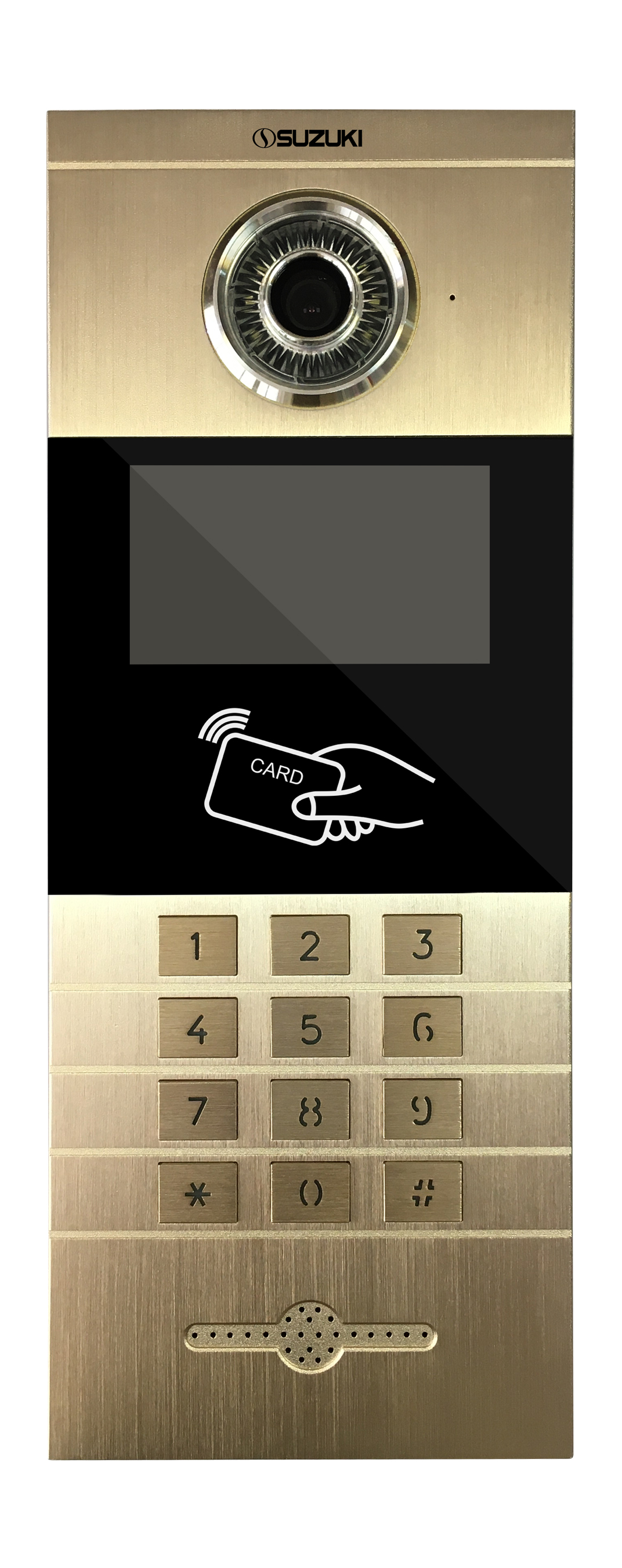

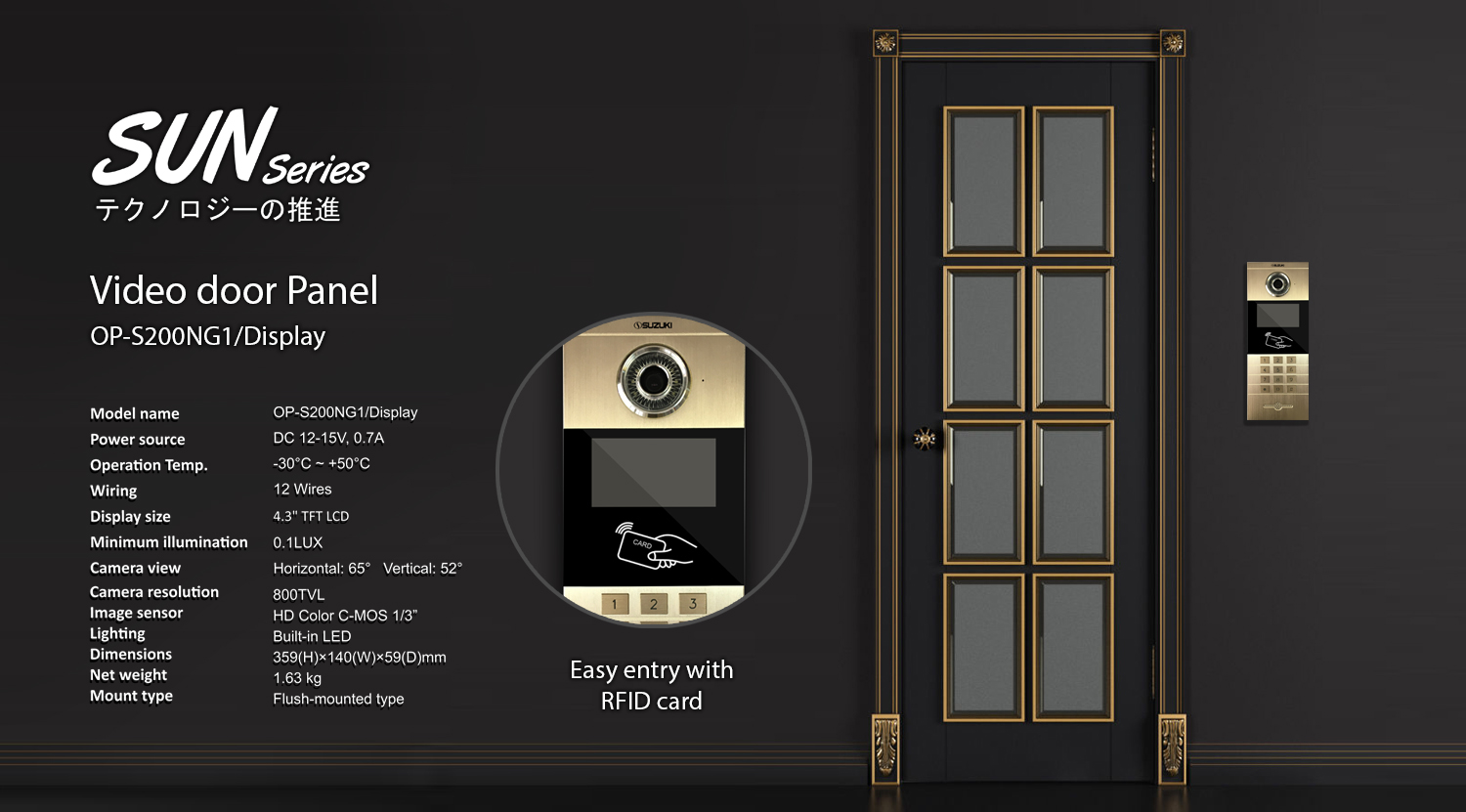

Video Outdoor Panel OP-S200NG1/Display Overview Specifications Gallery Overview Specifications Power Source Voltage: DC 12-15V, 0.7A Operation Temp. -30°C ~ +50°C Wiring 12 Wires Display size 4.3" TFT LCD Camera view Horizontal: 65° Vertical: 52 Minimum illumination: 0.1LUX Camera resolution 800 TVL Image Sensor HD Color C-MOS 1/3” Lighting Built-in LED Dimension(mm) 359*140*59mm Net Weight 1.63kg Mount type Flush-mounted type FUNCTION The high-quality image transmitting with HD camera Clear voice transmitting Luxurious and unique design Equipped with RFID card for easy entry Ability to define up to 2000 RFID cards to the device Expandable up to 200 units Equipped with 4.3” TFT LCD display Ability to assign the unique name and code to every unit as desired Speaker and microphone adjustability via panel setting Applicable to install and work in diverse climate High quality night vision provided by LED Resistant to water and dust penetration (IP 54) Gallery
